How to Plan a Custom Bathroom: Layout, Storage, Lighting & Material Choices

Reviewed by Siamak Firooz, structural engineer and CEO of CHC Remodel, a local Kirkland remodeling contractor with 80+ five-star Google reviews and 250+ reviews across other directories. Last reviewed: October 2026.

A truly functional custom bathroom starts with real clearances, efficient layout zones, proper moisture ventilation, and purposeful storage—long before you pick out tile colors, faucets, or mirrors.

Planning a custom bathroom remodel in Seattle requires balancing everyday morning routines with strict building codes, water-efficiency standards, and waterproof construction assemblies. Whether expanding a primary ensuite in Bellevue or reconfiguring a classic craftsman bathroom in Seattle, following a disciplined planning order protects your budget from expensive plumbing re-work.

The 8-Step Planning Order for a Custom Bathroom

A common error is buying tile, vanities, or faucets before finalizing structural framing and plumbing rough-ins. Follow this sequence:

1. Identify user routines: Determine whether the space serves two adults simultaneously in the morning, young children, or occasional weekend guests.
2. Define wet, dry, and transitional zones: Group wet fixtures (shower, tub) together to consolidate supply and drainage plumbing.
3. Assess the plumbing stack: Check whether floor joists allow moving the 3-inch toilet drain without notching structural framing.
4. Map real clearances: Verify walkways, vanity door swings, and glass shower door clearances on a scaled floor plan.
5. Select fixture types: Decide between a freestanding soaking tub, alcove tub, or expansive walk-in curbless shower.
6. Design integrated storage: Plan recessed medicine cabinets, shower shampoo niches, and tall linen pullouts into wall stud cavities.
7. Calculate electrical and ventilation loads: Position dedicated 20A circuits, GFCI outlets, layered task lighting, and proper CFM exhaust fans.
8. Finalize waterproofing assemblies and finishes: Select uncoupling membrane, continuous liquid waterproofing, and high-traction wet-area floor tile.

Code Clearances vs. Comfortable Bathroom Dimensions

Building code specifies the legal minimum space required to pass municipal inspection. Comfortable custom bathroom design plans for human movement:

Bathroom Element	IRC Code Minimum	Comfortable Recommendation	Why It Matters
Toilet Front Clearance	21 inches	30 to 36 inches	Prevents knees from hitting opposing vanity, wall, or door frame.
Toilet Side Clearance	15 inches from centerline (30 in total)	18 to 21 inches from centerline (36–42 in)	Provides comfortable elbow room and ease of cleaning around base.
Walk-In Shower Size	30 x 30 inches (900 sq in)	36 x 48 inches or 42 x 60 inches	Allows turning around and washing without elbows bumping glass walls.
Double Vanity Width	48 inches	60 to 72 inches	Ensures both adults have dedicated counter surface and elbow space.
Main Walkway Width	24 inches	32 to 36 inches	Allows two people to pass comfortably and supports future aging-in-place.
Shower Ceiling Height	80 inches (6 ft 8 in)	90 to 96 inches	Keeps steam from feeling trapped; accommodates rain showerhead heights.

Shower vs. Tub: How to Decide

One of the most frequent bathroom planning debates is whether to retain a bathtub or remove it in favor of a larger walk-in shower:

• Keep or add a tub when: The home has only one bathroom, you have infants or toddlers, family members take therapeutic baths regularly, or you have sufficient floor area for both a freestanding soaking tub and a separate 4×5 ft shower.
• Choose a shower-only layout when: Another bathroom in the home already has a bathtub, daily routines are shower-focused, space is under 60 square feet, or you want a curbless zero-threshold entry for mobility and safety.
• Resale value impact: In the Seattle real estate market, having at least one bathtub in the house is important for prospective family buyers. However, in the primary ensuite, a spacious walk-in shower is preferred over an unused jetted corner tub.

Purposeful Bathroom Storage by Activity

Effective bathroom storage anticipates what items are accessed daily versus weekly:

• At the vanity (daily essentials): Deep drawers with interior electrical outlets for hairdryers and shavers, divided organizer trays, and recessed medicine cabinets behind mirrors.
• In the shower (washing products): Recessed tile niches placed outside direct water spray, with a shelf height of at least 14 inches to accommodate tall shampoo pump bottles.
• Linen & bulk storage (weekly items): A floor-to-ceiling shallow linen tower (12 to 15 inches deep) prevents towels and bulk toilet tissue from getting lost in deep, hard-to-reach shelves.

Layered Lighting and Electrical Requirements

A single overhead light creates unflattering shadows under eyes and chin. A well-designed custom bathroom combines three layers of light:

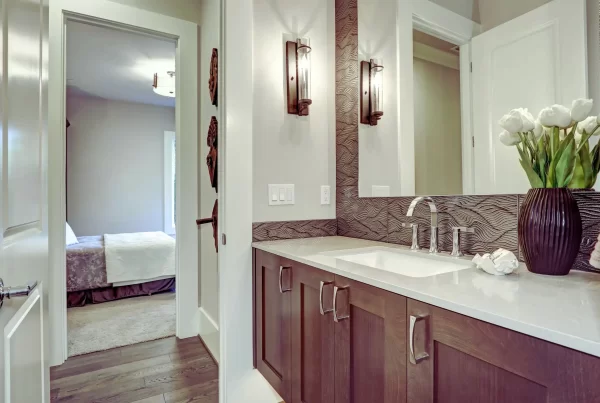

1. Task lighting at the mirror: Vertical wall sconces mounted at eye level (60 to 66 inches from the floor) on both sides of the mirror illuminate the face evenly without harsh shadows.
2. Ambient ceiling lighting: Recessed LED downlights on dimmers provide general room illumination for cleaning and evening winding down.
3. Shower task lighting: Wet-rated recessed LED fixtures provide focused illumination inside enclosed shower stalls.

Electrical Code: In Seattle, bathroom receptacle outlets must be on a dedicated 20-amp branch circuit, protected by Class A Ground-Fault Circuit-Interrupters (GFCI), and positioned within 3 feet of vanity basin rims.

Washington Ventilation Codes and Exhaust Fan Sizing

In the damp Pacific Northwest climate, proper ventilation is essential to protect drywall, paint, and framing from mold and mildew. Washington State Energy Code and mechanical regulations require:

• Exhaust capacity rule: The fan must deliver at least 1 CFM per square foot of bathroom area (minimum 50 CFM for bathrooms up to 50 sq ft). For bathrooms over 100 sq ft, add 50 CFM for each toilet, shower, or tub.
• Direct exterior ducting: Exhaust air must be ducted through rigid or semi-rigid smooth ductwork directly through the roof cap or exterior sidewall with a backdraft damper. Venting into attics, soffits, or crawlspaces is strictly prohibited.
• Controls: Code requires fans to be operated by a humidity-sensing control (humidistat) or a digital delay-off countdown timer so the fan runs for 20 minutes after showers finish.

Tile Slip Ratings (DCOF) and Waterproofing Assemblies

Bathroom Zone	Recommended Material	Slip Rating (DCOF)	Waterproofing Requirement
Shower Floor	Textured porcelain mosaic tile (2×2 in or smaller)	DCOF >= 0.42 (Wet)	Continuous waterproof membrane pan; pre-slope to drain
Shower Walls	Glazed ceramic, porcelain, or large format tile	Not applicable	Vapor barrier behind backer board or bonded surface membrane
Main Floor	Matte finish porcelain tile, heated stone tile	DCOF >= 0.42	Uncoupling crack-isolation membrane over subfloor
Vanity Countertops	Engineered quartz, solid surface, quartzite	Non-porous surface	Caulked silicone bond at backsplash and sink rim

Worked Example: 8 x 10 ft Primary Bathroom Layout & Budget

To illustrate how these principles translate into an actual project, consider an 80-square-foot primary ensuite remodel in a Seattle home:

• Layout plan: 42 x 60 inch walk-in shower with frameless glass along the back wall, 60-inch double sink vanity along the plumbing wall, elongated comfort-height toilet placed with 36 inches of private clearance, and a recessed 15-inch linen storage cabinet.
• Plumbing & heating: Thermostatic shower valve with handheld wand, WaterSense 1.28 GPF dual-flush toilet, and electric radiant in-floor heating mat under floor tiles.
• Estimated investment breakdown: Rough plumbing and structural preparation ($8,000–$12,000), waterproofing and tile installation ($9,000–$14,000), custom vanity and quartz tops ($5,000–$8,000), fixtures, glass, lighting and permits ($6,000–$10,000). Total project: approximately $35,000 to $55,000.

Explore real primary ensuite transformations on our Seattle bathroom remodeling service page.

Common Bathroom Planning Mistakes to Avoid

1. Not checking joist direction: Running a new 3-inch toilet drain line perpendicular to floor joists can compromise structural integrity without costly joist sistering.
2. Overlooking shower door swings: Installing a hinged shower glass door that collides with the vanity or bathroom entry door.
3. Skipping dedicated makeup lighting: Relying solely on overhead can lights that cast harsh downward shadows on faces.
4. Using polished tile on shower floors: Polished marble or porcelain becomes dangerously slick when wet and soapy.
5. Undersizing exhaust CFM: Installing a 50 CFM builder-grade fan in a large bathroom leads to peeling paint and moisture buildup.

What to Do Now Checklist

• Measure your existing bathroom dimensions, window locations, and plumbing stack positions.
• List your non-negotiable functional requirements (double vanity, walk-in shower, soaking tub, linen storage).
• Review our remodeling contractor due-diligence checklist to prepare your contractor interview questions.
• Schedule a design consultation with a licensed remodeling contractor who coordinates engineering and permits.

Frequently Asked Questions

What is the minimum size for a comfortable custom bathroom?

A full three-piece bathroom (toilet, vanity, walk-in shower) requires a minimum of 35 to 40 square feet (such as 5 x 7 ft). A comfortable primary ensuite with double vanity and large shower performs best at 70 to 100 square feet (such as 8 x 10 ft or 8 x 12 ft).

How much does it cost to move plumbing fixtures in Seattle?

Relocating a toilet or drain across the room typically adds $1,500 to $3,500 per fixture, depending on whether floor joists run parallel or perpendicular, access from the ceiling below, and venting requirements through the roof.

Do I need a building permit for a bathroom remodel in Seattle?

Yes. If your bathroom remodel alters wall framing, moves electrical circuits, or replaces plumbing supply and drain lines, permits are required from SDCI (building and electrical) and Public Health Seattle & King County (plumbing).

What tile is safest for a bathroom floor?

Matte-finish porcelain tile with a Dynamic Coefficient of Friction (DCOF) rating of 0.42 or higher is the industry standard for slip safety in wet areas. On shower floors, small mosaic tiles (2×2 inches or smaller) provide extra traction through frequent grout lines.

What CFM exhaust fan do I need for my bathroom?

A baseline rule is 1 CFM per square foot of room area, with a minimum of 50 CFM. For larger primary bathrooms with enclosed toilets and separate tubs, a fan rated at 100 to 150 CFM with a humidity sensor ensures effective moisture removal.

Is heated flooring worth it in a Seattle bathroom?

Yes. Electric radiant floor heating under tile adds modest cost ($1,200 to $2,500 including thermostat) and provides consistent warmth on cold Northwest mornings while helping wet tile dry significantly faster.
